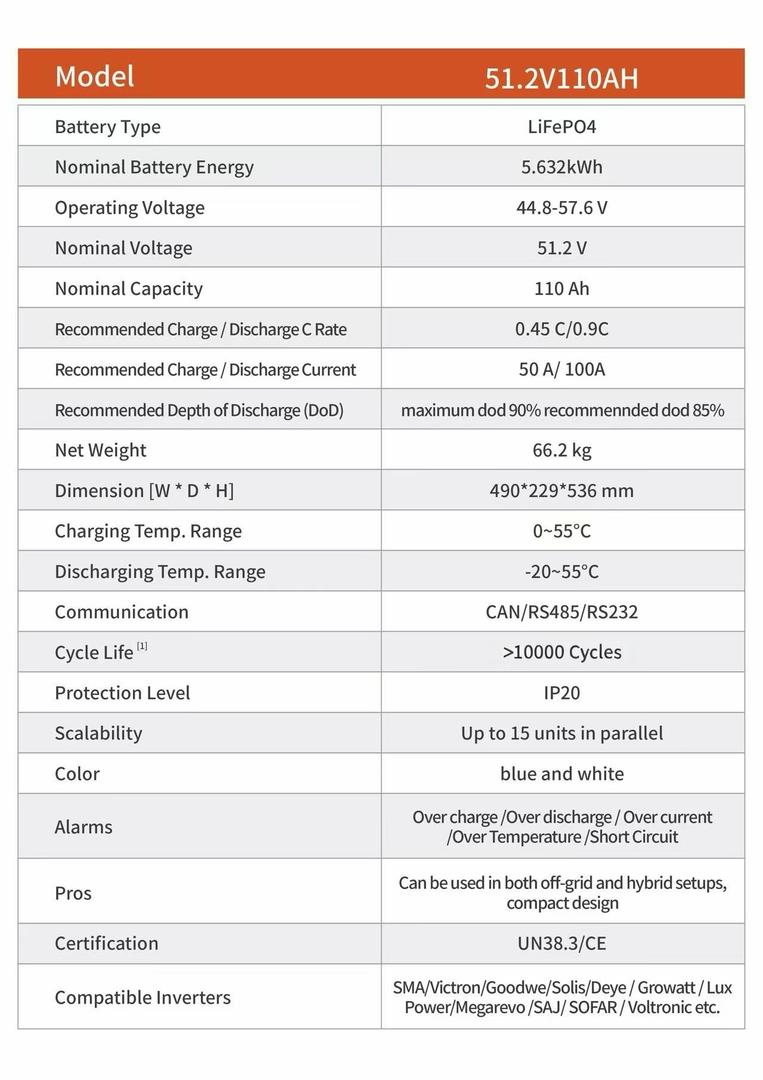

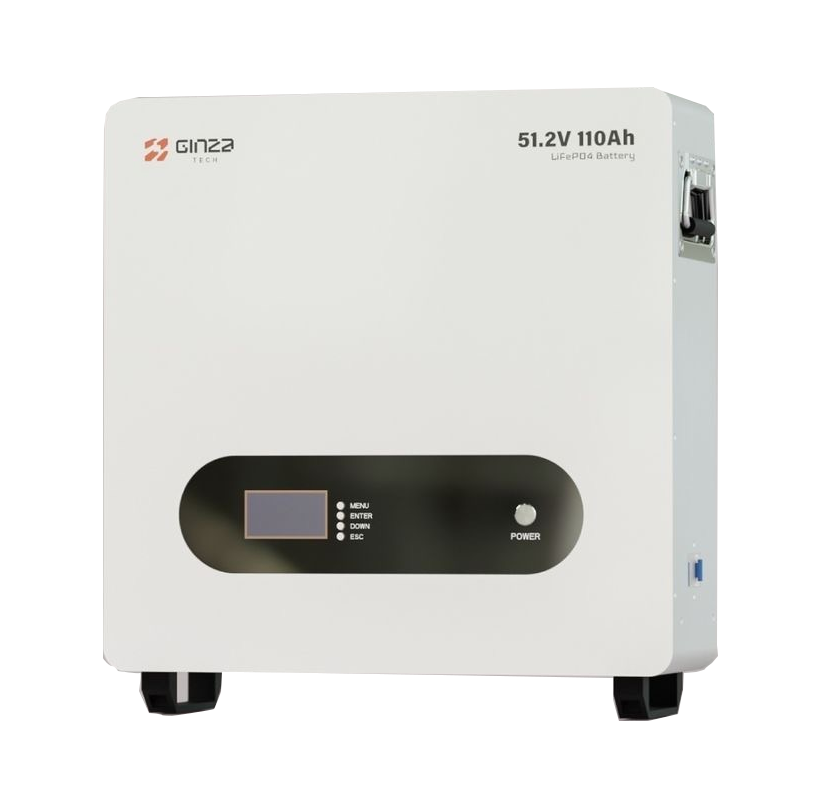

| Model | 51.2V110AH |
|---|---|
| Battery Type | LiFePO4 |
| Nominal Battery Energy | 5.632 KWh |
| Operating Voltage | 44.8 ~ 57.6 V |
| Nominal Voltage | 51.2 V |
| Nominal Capacity | 110 Ah |
| Recommended Charge/Discharge C Rate | 0.45C / 0.9C |
| Recommended Charge/Discharge Current | 50A / 100A |
| Depth of Discharge (DoD) | Max 90%, Recommend 85% |
| Weight | 66.2 Kg |
| Dimension (W x D x H) | 490 x 229 x 536 mm |
| Charging Temperature Range | 0~55C |
| Discharging Temperature Range | -20~55C |
| Communication | CAN/RS485/RS232 |
| Cycle Life | >10000 cycles |
| Protection Level | IP20 |
| Parallel | 15 |
| Alarm | Over charge / Over discharge / Over current / Over temperature / Short Circuit |
| Certification | UN38.3 / CE |
